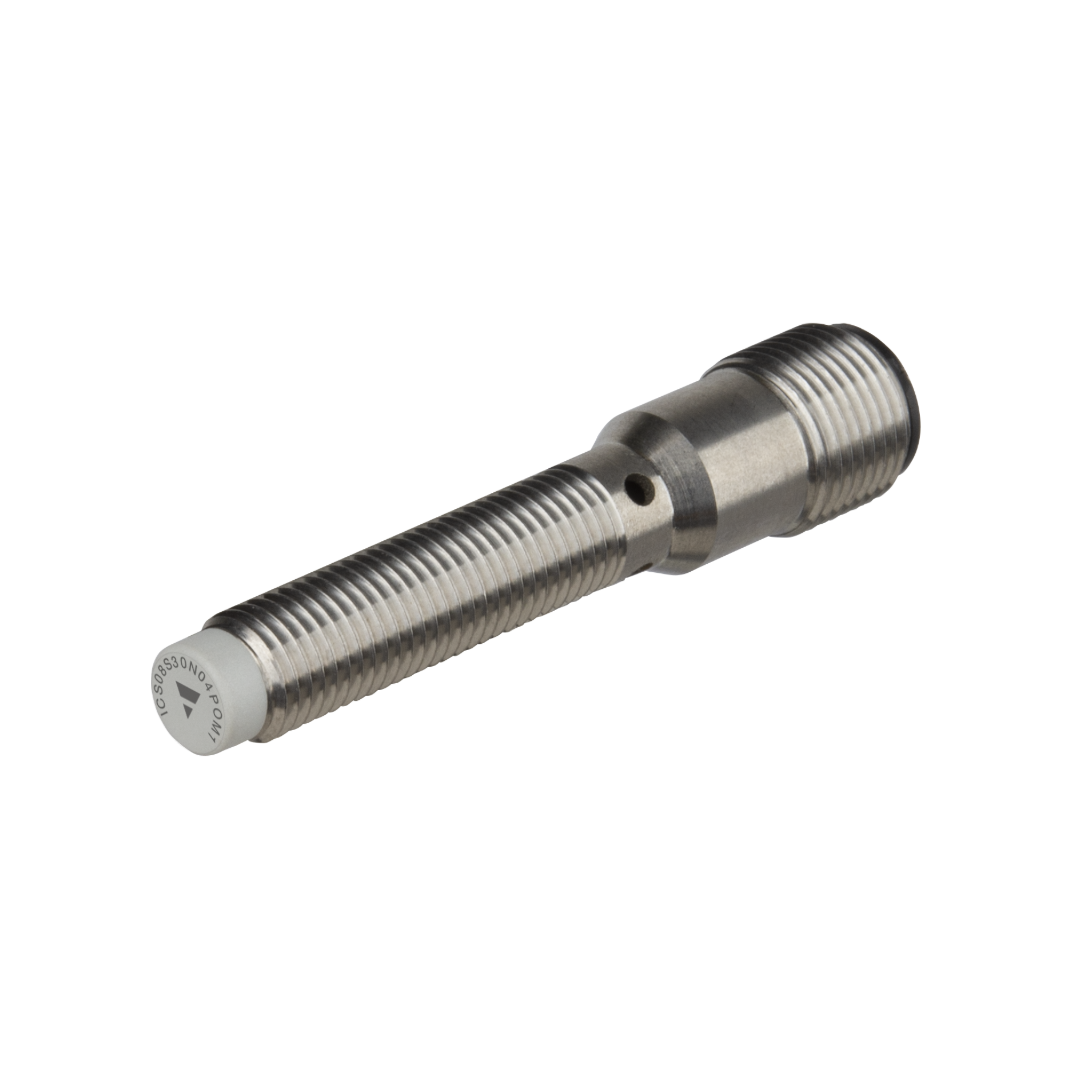

Inductive Proximity Sensor (3011744) Inductive Proximity Sensor (3011744)

£49.07
SKU: 3011744
Sensor
AXYZ
Description Description

This sensor directly connects to sensor cabling.



Inductive proximity sensor, M8 Stainless steel, M12 plug, Sn 2.5mm, Non-Flush mount, Short body, PNP, NO, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C - +80C, IP67



Specifications

Rated operating distance: 2.5 mm
Installation type: Non-flush
Diameter: M8
Output type: PNP
Output function: Normally Open (NO)
Connection type: Connector M12
Housing type: Cylindrical, threaded barrel
Housing material: Metal
Rated power supply: 10 V ... 36 V



**Replacing part # 20059

This sensor directly connects to sensor cabling.



Inductive proximity sensor, M8 Stainless steel, M12 plug, Sn 2.5mm, Non-Flush mount, Short body, PNP, NO, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C - +80C, IP67



Specifications

Rated operating distance: 2.5 mm
Installation type: Non-flush
Diameter: M8
Output type: PNP
Output function: Normally Open (NO)
Connection type: Connector M12
Housing type: Cylindrical, threaded barrel
Housing material: Metal
Rated power supply: 10 V ... 36 V



**Replacing part # 20059
